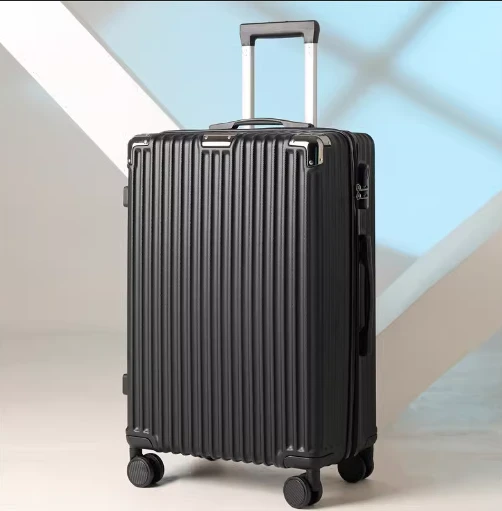

ABS Sheet rau Luggage Manufacturing - Kev Taw Qhia Khoom Muag
Hauv lub ntiaj teb kev sib tw ntawm kev tsim khoom ntim, kev xaiv cov khoom siv ncaj qha cuam tshuam rau kev ua haujlwm ntev, qhov hnyav, kev zoo nkauj, thiab tus nqi- ua haujlwm tau zoo. Ntawm ntau yam kev xaiv, ABS (Acrylonitrile Butadiene Styrene) daim ntawv tau tshwm sim raws li qhov kev xaiv zoo tshaj plaws rau cov tuam txhab nrhiav kev sib npaug ntawm kev ua tau zoo thiab kev ua tiav. Peb lub tuam txhab tshwj xeeb hauv kev tsim cov qib siab -cov ntawv zoo ABS extruded tailored tshwj xeeb tshaj yog rau lub nra kev lag luam, thiab peb txaus siab rau peb tus kheej rau muab ib tug ua tiav, integrated manufacturing tov - los ntawm raw cov ntaub ntawv extrusion mus rau qhov kawg cov khoom tiav.
Peb Cov Ntawv Extruded ABS - Ua tau zoo
Tsis zoo li cam khwb cia lossis calendered nplooj ntawv, peb cov ntawv ABS yog tsim los ntawm cov txheej txheem txuas ntxiv, uas ua kom cov tuab tuab, cov khoom siv zoo ib yam, thiab kev ruaj ntseg zoo heev. Peb ua haujlwm siab extrusion kab uas tso cai rau peb los kho txhua qhov tseem ceeb raws li koj lub nra tsim cov cai:
- Qhov ntev- Daim ntawv dav thiab ntev tuaj yeem tsim kho kom haum rau koj cov pwm tsim thiab txo cov khoom pov tseg.
- Thickness- Ntau yam ntawm 1.0 hli mus rau 6.0 hli los yog ntau tshaj, peb tuaj yeem kho cov tuab kom haum rau qhov sib txawv ntawm lub nra (xws li, thinner rau cov ces kaum hloov tau, thicker rau cov npoo ntxiv).
- Kev ua tau zoo- Los ntawm kev hloov kho cov txheej txheem extrusion, peb tuaj yeem ua kom zoo - kho qhov cuam tshuam lub zog, kub deflection kub, nplaim taws retardancy, los yog gloss nto. Piv txwv li, cov ntsiab lus roj hmab ntau dua tuaj yeem txhim kho qis- qhov kub thiab txias, thaum lub tshuab muab tub lim hloov kho txhim khu kev nruj rau daim tshev loj- hauv hnab ev khoom.
Txhua batch tau txais kev tswj xyuas nruj - suav nrog kev ntsuas thickness, ntsuas tensile, thiab tshuaj xyuas saum npoo - kom lav qhov sib xws ntawm yob rau yob lossis ntawv rau daim ntawv.
Vim li cas ABS Sheet? Core Advantages rau nra
ABS daim ntawv nqa cov khoom sib xyaw tshwj xeeb uas ua rau nws tshwj xeeb tshaj yog haum rau lub hnab ntim khoom thiab cov khoom siv sab hauv. Ua ntej, nws muaj kev cuam tshuam zoo heev - lub nra inevitably ua rau kev tuav rawv, tee, thiab compression thaum caij tsheb thauj mus los, thiab ABS absorbs poob siab zoo yam tsis muaj tawg. Qhov thib ob, nws yog lub teeb yuag, pab cov neeg taug kev kom tau raws li lub dav hlau hnyav txwv thaum tswj kev ua haujlwm zoo. Thib peb, ABS nthuav tawm cov tshuaj tiv thaiv zoo heev tiv thaiv cov khoom siv xws li roj, tshuaj ntxuav, thiab dej noo, kom ntseeg tau ntev - lub sijhawm zoo thiab kev ua haujlwm. Plaub, cov khoom siv lub siab tawv tawv tiv thaiv khawb, thaum nws cov glossy tiav lees txais ntau yam xim thiab textures, ua kom muaj txiaj ntsig zoo. Thaum kawg, ABS yog thermoplastic, txhais tau tias nws tuaj yeem rov ua dua thiab rov ua dua - qhov tseem ceeb tshaj plaws rau cov txheej txheem nqus tsev. Piv rau polycarbonate lossis polypropylene, ABS muaj tus nqi zoo tshaj - rau - kev ua tau zoo piv, ua rau nws zoo tagnrho rau nruab nrab - ntau yam thiab cov hnab nqa taug kev zoo ib yam.
Thawj Txoj Kev Ua Haujlwm - Nqus Thermoforming
Cov txheej txheem tseem ceeb ntawm kev hloov cov ntawv ABS rau hauv lub hnab nqa khoom yogLub tshuab nqus tsev thermoforming(tseem hu ua vacuum forming). Cov txheej txheem no suav nrog cov cua kub ntawm cov ntawv ABS extruded rau qhov kub thiab txias (feem ntau nyob ib ncig ntawm 150-180 degree), ces kos nws hla tus txiv neej lossis poj niam pwm siv lub tshuab nqus tsev. Cov yas softened conforms zoo kawg nkaus rau cov pwm contour, tsim complex peb -dimensional shapes - los ntawm ntiav nkhaus mus tob-kos lub thawv rau khaub ncaws halves nrog integrated kov recesses, log vaj tse, thiab ribbed reinforcements.
Kev tsim lub tshuab nqus tsev yog qhov zoo tshwj xeeb rau kev tsim lub nra rau ntau yam laj thawj:
- Tus nqi -kev ua tau zoo- Muab piv rau kev txhaj tshuaj molding, lub tshuab nqus tsev tsim nyog yuav tsum tau txo cov cuab yeej cuab tam. Moulds tuaj yeem ua los ntawm txhuas, epoxy, lossis txawm tias cam khwb cia resin, uas tsis tshua kim dua cov hlau txhaj tshuaj molding. Qhov no ua rau nws yog ib qho kev xaiv pheej yig rau me me - mus rau - cov khoom ntim nruab nrab (feem ntau yog 1,000 txog 50,000 units ib tus qauv) nrog rau cov loj - qhov loj me (piv txwv li, 28-inch check nra) uas yuav siv tsis tau lossis txwv tsis pub kim nrog kev txhaj tshuaj molding.
- Yooj yim- Cov qauv kev hloov pauv tuaj yeem ua tiav sai los ntawm kev hloov kho lossis hloov cov pwm, tso cai nrawm nrawm rau cov khoom ntim tshiab.
- Khoom siv efficiency- Cov txheej txheem tsim cov khoom seem tsawg, thiab txhua qhov ntug trim tuaj yeem rov ua dua thiab rov siv dua hauv cov ntawv tsis yog - tseem ceeb, txo cov nqi khoom.
Peb lub Hoobkas tau nruab nrog ntau lub tshuab nqus tsev tsim, xws li los ntawm cov chav kuaj me me mus rau loj - cov ntawv xovxwm muaj peev xwm tuav cov ntawv ntev txog 2.5 meters - zoo meej rau cov pob tw loj thiab cov rooj plaub tshwj xeeb.
Ncej -Forming Precision - 5-Axis CNC Routing
Thaum lub plhaub ABS yog lub tshuab nqus tsev- tsim, nws feem ntau xav tau kev siv tshuab ntxiv kom ua tiav qhov kawg ua haujlwm thiab cov ntsiab lus zoo nkauj. Nov yog qhov peb5-axis CNC tshuabcov chaw tuaj ua si. Tom qab tsim, peb siv siab -ceev 5-axis routers los ua cov haujlwm thib ob, suav nrog:
Trimming flash thiab dhau flange npoo kom huv si, dimensionally raug perimeter.
Txiav tawm qhov kov, xauv qhov, pob khawm recesses, thiab lub log qag qhib nrog kev ua siab ntev nruj li ± 0.1 hli.
Milling hniav grooves, logo indentations, los yog textured panels uas txhim khu lub nra qhov pom kev pom.
Drilling rivet qhov thiab cov ntsiab lus mounting rau hauv ob sab phlu, dividers, thiab telescopic kov sib dhos.
Lub peev xwm 5-axis tso cai rau peb los ua cov txheej txheem undercuts, lub kaum sab xis, thiab nkhaus contours uas yuav ua tsis tau nrog cov khoom siv 3-axis, tag nrho thaum tswj kev ua tiav zoo tshaj plaws tsis muaj delamination lossis burring. Cov kauj ruam no ua kom ntseeg tau tias txhua lub hnab ntim khoom tau npaj rau kev sib dhos zaum kawg, pleev xim, lossis lamination nrog tsawg kawg nkaus ua tiav.
Ib -Stop Service - Los ntawm Extrusion mus rau qhov kawg
Dab tsi ua rau peb sib nrug yog peb qhov chaw tsim khoom vertically integrated. Hauv ib lub ru tsev, peb ua haujlwm:
Extrusion kab- Ua cov ntawv ABS kev cai rau koj qhov tshwj xeeb.
Vacuum forming machines- tsim cov ntawv no rau hauv lub hnab nqa khoom.
5-axis CNC routers- ua precision ncej-forming machining.
Qhov kev sib koom ua ke no tshem tawm qhov mob taub hau logistical thiab kev pheej hmoo zoo cuam tshuam nrog kev tawm mus rau ntau tus neeg muag khoom. Koj tau txais txiaj ntsig los ntawm:
Shorter lub sij hawm coj- tsis txhob tos rau daim ntawv xa los ntawm cov mills sab nraud; peb pib nrog raw resin thiab xa cov khoom tiav.
Tighter zoo tswj- txhua theem, los ntawm qhov kub thiab txias mus rau txoj kev txiav, yog saib xyuas los ntawm peb hauv - pab pawg neeg ua haujlwm hauv tsev.
Tus nqi qis dua- txo kev thauj mus los, tuav, thiab cov nqi khoom muag, ntxiv rau kev txuag nyiaj ntau.
Kev sib koom ua ke- peb cov txheej txheem engineers tuaj yeem kho daim ntawv tsim thiab tsim cov tsis sib xws los daws cov teeb meem xws li webbing, thinning, lossis warpage, kom ntseeg tau ua ntej - kis tau tus nqi siab dua 98%.
Txawm hais tias koj tab tom tsim cov khoom nqa tshiab- ntawm cov koob, lub pob tw rugged, lossis lub hnab ntim khoom kim heev, peb muab kev sib koom tes tsim kev txhawb nqa - los ntawm kev tsim qauv nrog pwm ib ntus mus rau siab - ntim ntau lawm nrog cov cuab yeej siv tau ntev. Peb kuj muab cov kev kho mob saum npoo av xws li pleev xim, UV txheej, lossis zaj duab xis lamination kom ua tiav cov xim, gloss, lossis muag muag -kov tiav.
